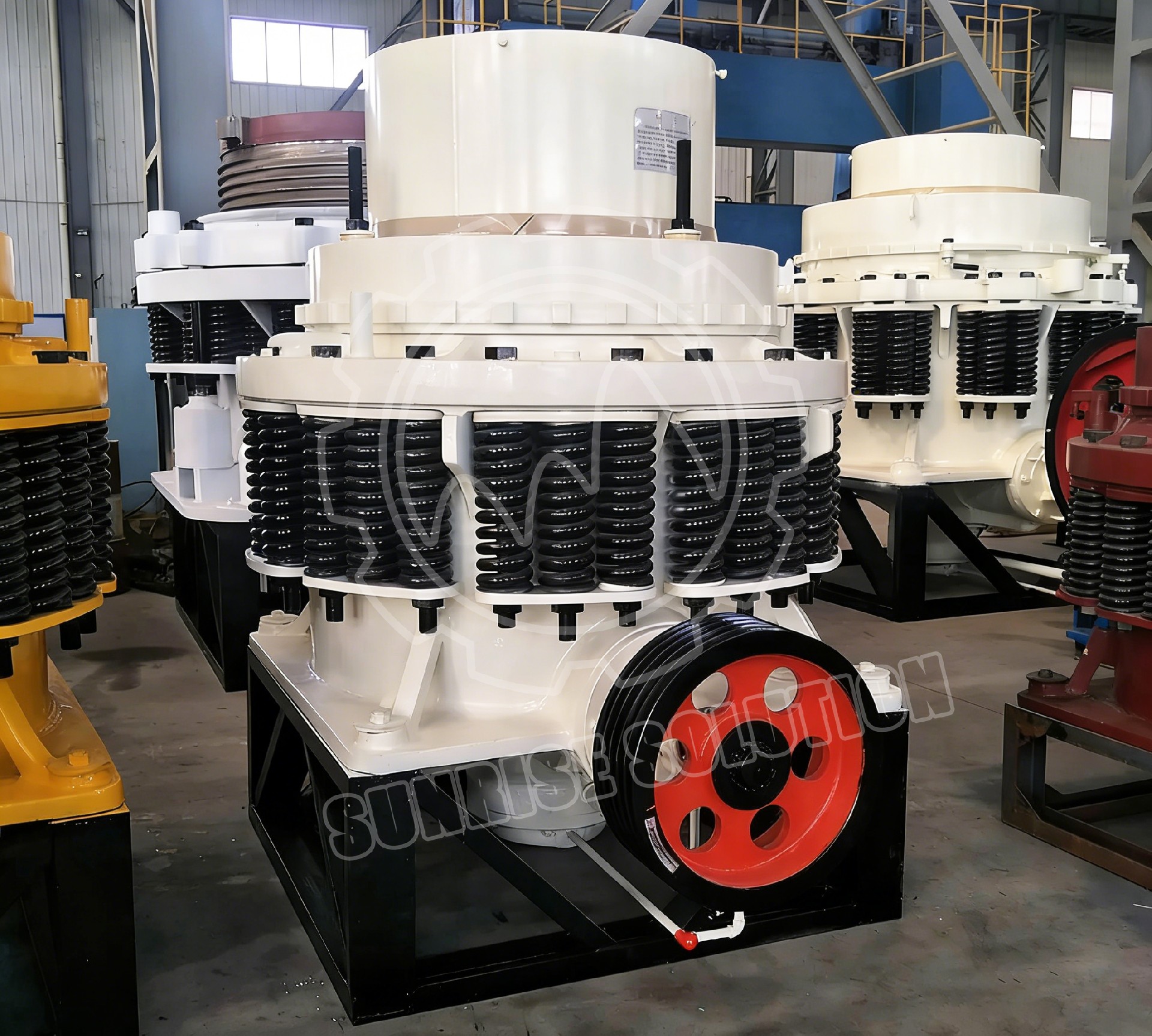

This series of crusher machine is divided into three types, namely coarse cone crusher, medium cone crusher and fine cone crusher, and the standard type is suitable for medium crushing; the medium type and the short-headed type is suitable for fine crushing, so that the customers can choose different types according specific need.
This cone crusher is suitable for crushing various kinds of ores and rocks with medium over hardness and it has the features of reliable structure, high production efficiency, convenient adjustment and economic use. It adopts two sealing means: dry oil and water to separate stone powders and lubrication grease, thus ensuring reliable work of the machine.

1. Large crushing ratio: The combination of high-performance crushing cavity and high crushing frequency greatly improves the processing capacity of the cone crusher, and the output per hour of a single machine can reach 2181 tons.

2. Laminated crushing, good grain shape: The principle of inter-granular lamination crushing is adopted, so the crushed products are mostly cubic structure, which reduces the needle-like materials to a greater extent.

3. Simple structure and easy maintenance: Cone crusher has simple structure, easy operation and maintenance, convenient and quick adjustment of the discharge opening, saving time and effort during maintenance, especially the lining board is easy to quickly replace, reducing downtime.

4. Safe operation and convenient operation: The fully automatic control system of PLC + touch screen ensures the safe operation of the equipment, and is equipped with a remote touch screen operation interface to display real-time working status.

5. Different types and diverse choices: the combination of multiple cavity types can meet the needs of multiple particle sizes. The cone crusher series crushers are divided into three types: coarse crusher, medium crusher and fine crusher, which can be purchased according to different needs of users.

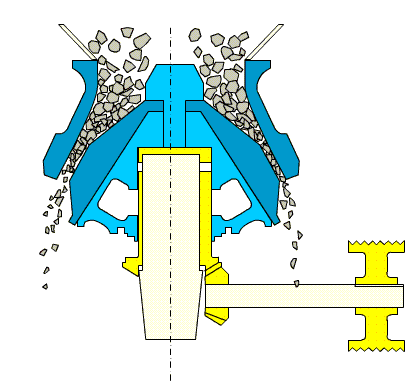

When the cone crusher is working, the motor rotates through the pulley or coupling, the drive shaft of the cone crusher, and the cone part of the cone crusher makes a swing movement around a fixed point under the force of the eccentric sleeve;

As a result, the cone crushing wall is sometimes close to and away from the surface of the mortar wall fixed on the adjusting sleeve, so that the ore is continuously impacted, squeezed and bent in the crushing cavity to realize the crushing of the ore.
